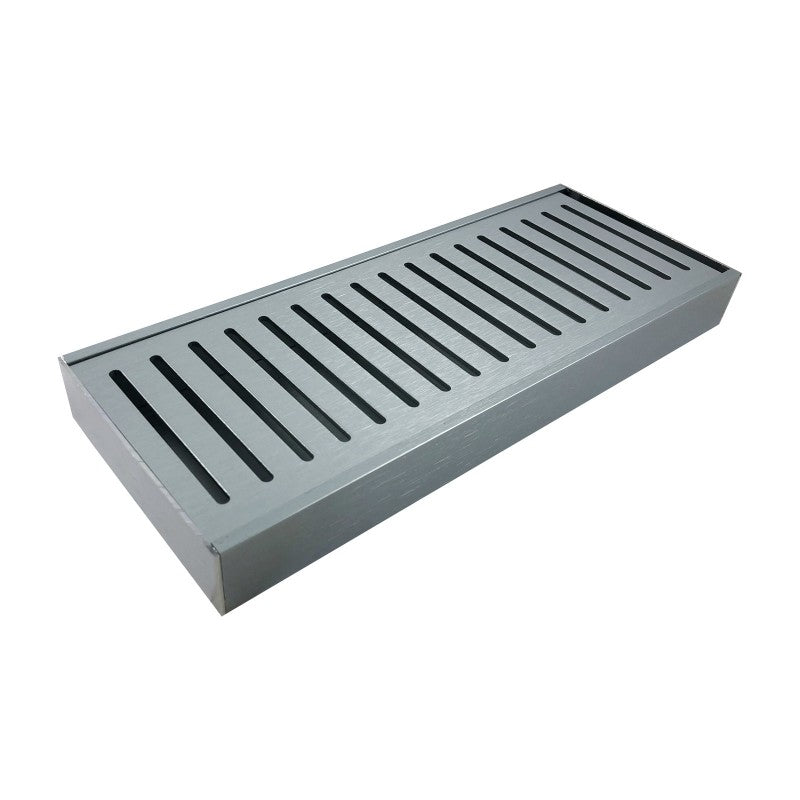

LCWFG 300-5600mm Lauxes Aluminium Standard Floor Grate Drain Any Size Indoor Outdoor

Specifications:

• Any size from 300mm.
• Size (mm): (300-5600)L x 100W x 26H
• 4 Waste Sizes: 40/50/72/80mm
• Color: Silver
• Rust proof
• Lightweight
• Top grate easily removed for cleaning
• Different colour choices to suit application
• Easy to cut to desired length
• Easy to clean (easy to roll out system)
• No welding required
• No major plumbing involved as waste can be positioned anywhere along the bottom tray
• Perfect use for indoor/outdoor applications
• Lifetime: Rustproof Warranty
• Package Contents:
• 1 x Floor Drain
• 1 x Waste
• 1 pair of end cap

Cutting & Assembly Instructions:

For easy cutting of floor grate, we recommend the use of a compound mitre saw fitted with a multi-material cutting blade 80 tooth or more. A compact drill with a bimetal hole would be adequate to drill the hole for the waste outlet.

• 1.Cut the bottom tray 3mm shorter than desired length to allow end caps to be fitted
• 2.Cut the top grate 1mm shorter than the bottom tray to allow for easy roll in of top grate and tidy fit
• 3.Using the suitable size hole saw for your pop waste, drill out the hole at the required position to align with the waste pipe in the floor
• 4.Insert the end caps into the bottom tray and secure with a bead of silicone on the inside of the tray
• 5.Place silicone around the lip of the pop waste and secure to the underside of the bottom tray at the recently drilled hole

Please Note:  Our 'Lauxes' shower grates are 'custom cut' to size.  As a 'Special Customer' order, item's cannot be returned once they are cut to your

specified size unless there is a manufacturer's fault, defect or stock arrives damaged.  It is important to confirm size before placing your order.  Thank You!
